Poljski zamenljivi priključki



Koaksialni priključki RF za zamenjavo polja so ključne komponente RF sistemov . So zasnovani posebej za namestitev in zamenjavo na kraju samem . Ni potrebe po spajkanju; they can be fixed with screws, which simplifies the maintenance process. Even in harsh conditions, these connectors can remarkably maintain signal integrity. In RF circuits, they enable the quick replacement of damaged components. Their reliable performance ensures the stable transmission of RF signals, with low signal loss and minimal interference. This design is easy Za delovanje in zmanjšanje zapletenosti namestitve .



Overall, RF field replaceable coaxial connectors enhance the flexibility and reliability of the system and reduce long-term maintenance costs. The connector port types include various options such as SMA, 2.92mm, 2.4mm, 1.85mm, 1.0mm, GPO (SMP), etc., and the frequency range covers from DC to 110GHz.

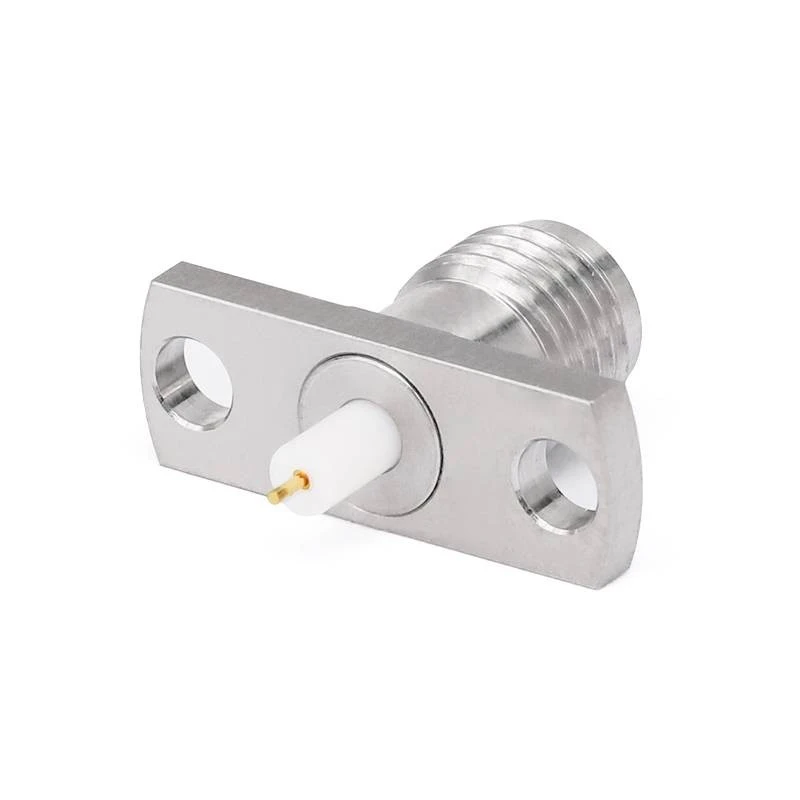

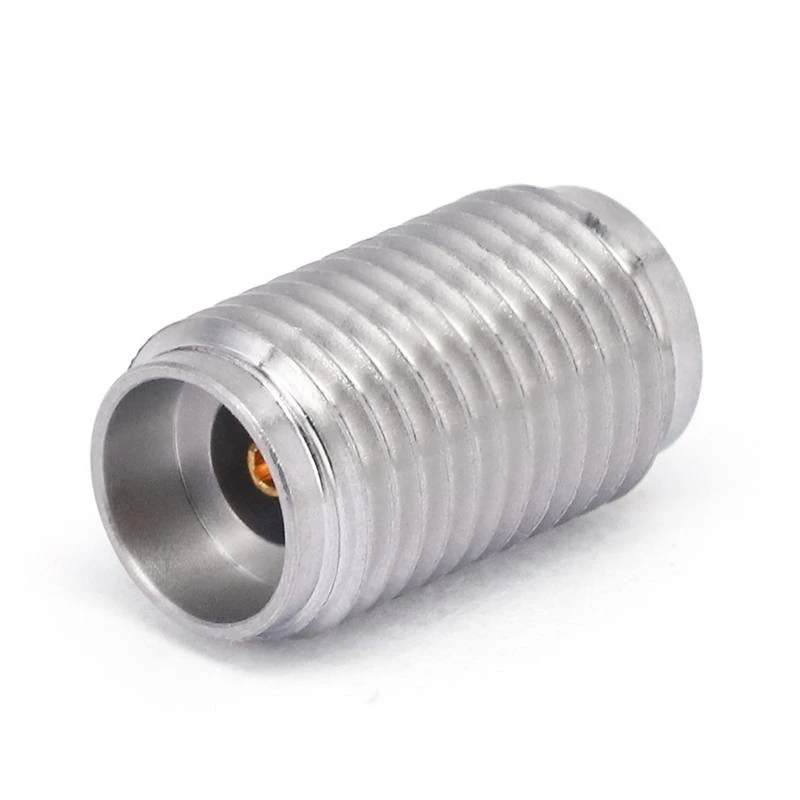

The Field replaceable coaxial connectors have four types of body forms, such as Straight, 4 Hole Flange, fully threaded embedded type, 2Hole Flange.This connectors has a Stainless Steel body and ensures an excellent microwave performance with low insertion loss and VSWR of 1.25. This connector is precisely manufactured to RF industries like military & space.





Koaksialni priključki za nadomestitev RF polja se uporabljajo za priključitev RF vezja antene, RF modulov, filtrov, navigacijskih naprav, radarskih sistemov itd.









Konfiguracija
Vrsta priključka	SMA/2,92 mm/2,4 mm/1,85mm/GPO
Impedanca priključka	50 ohmov
Polarnost priključka	Standardno
Način pritrditve priključka	Ravna/ 2 luknja prirobnica/ 4 luknja prirobnica
Način pritrditve	Stik
Informacije o materialih
Center stik	Kocka pozlačena
Zunanji stik	Nerjavno jeklo
Telo	Nerjavno jeklo
Dielektric	PEI/PTFE
Okoljski podatki
Temperaturno območje	-55 stopnja do +165
2011/65/EU (ROHS)	Skladno

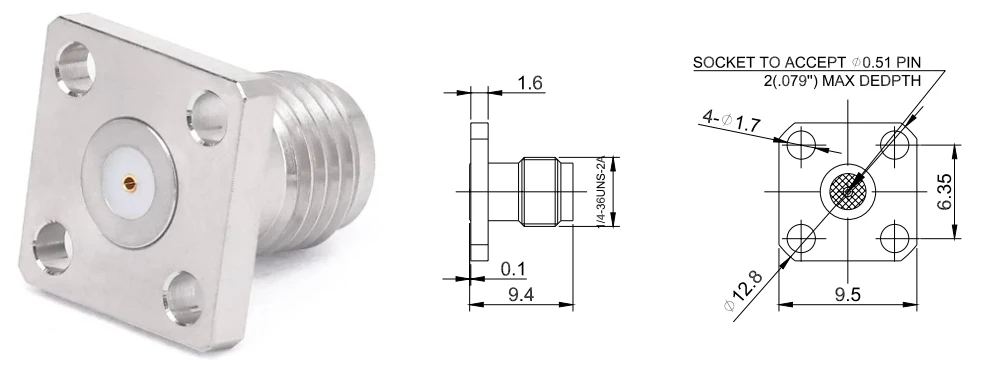

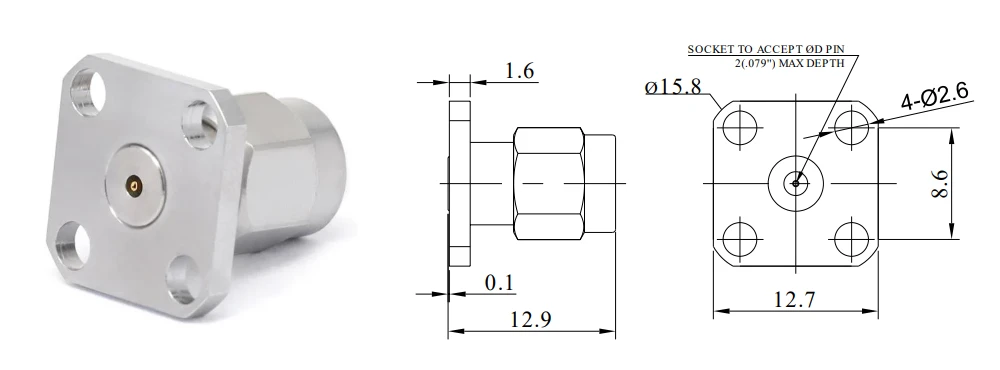

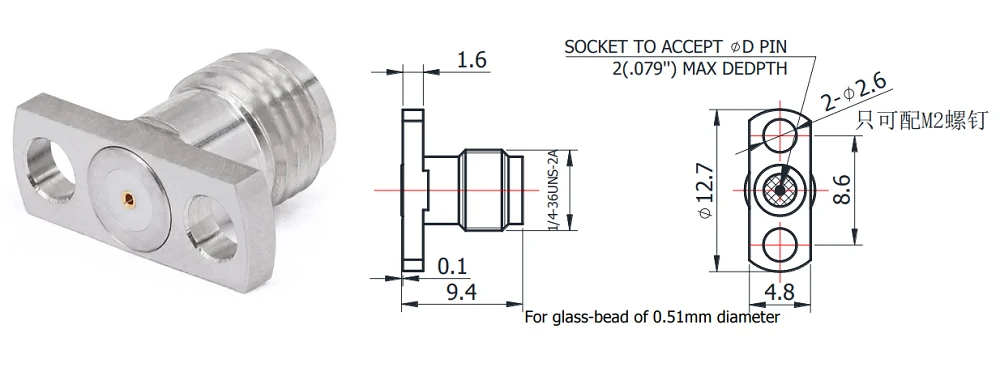

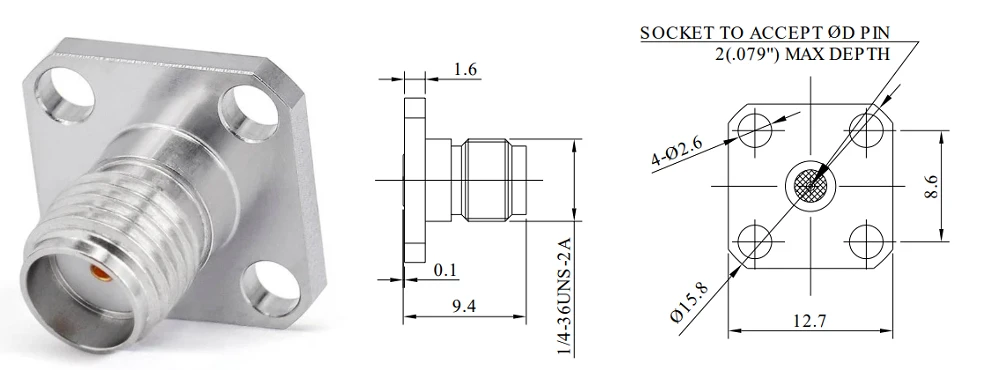

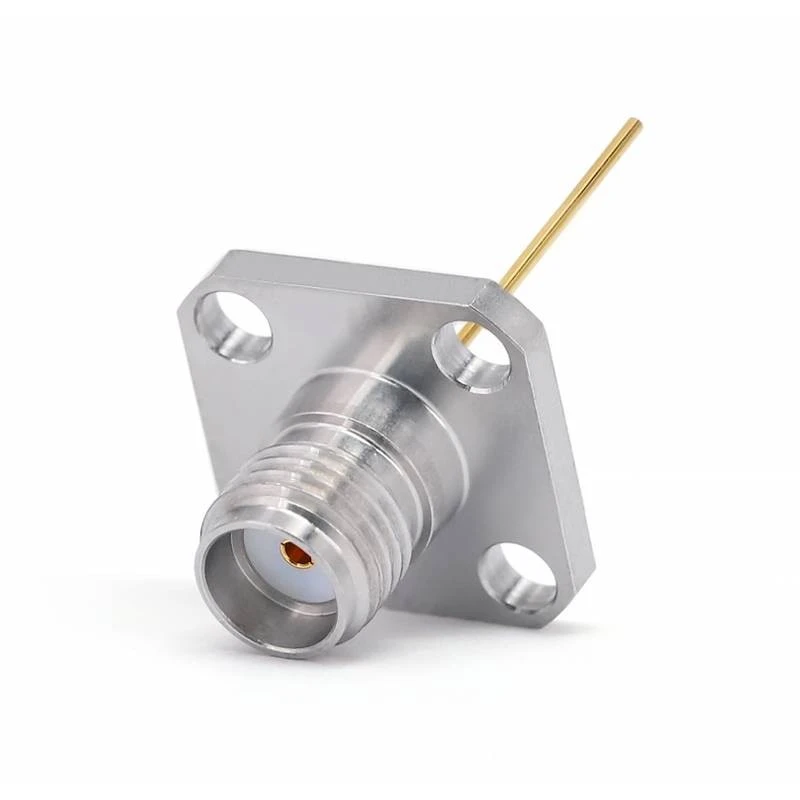

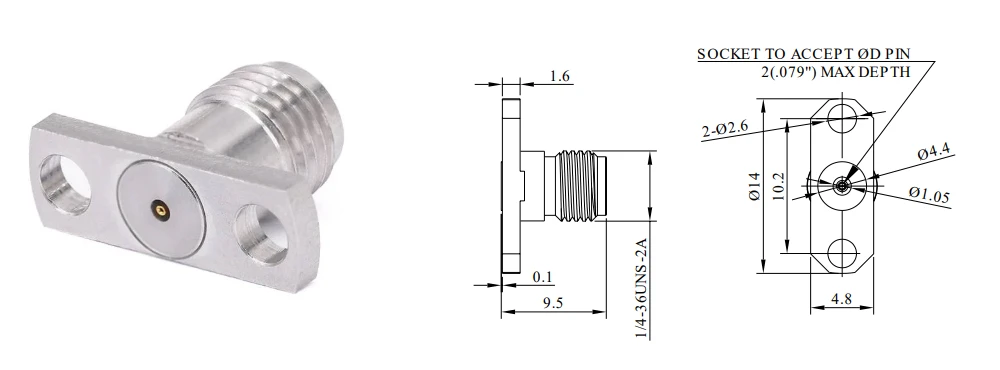

Zamenjalni priključki SMA polja

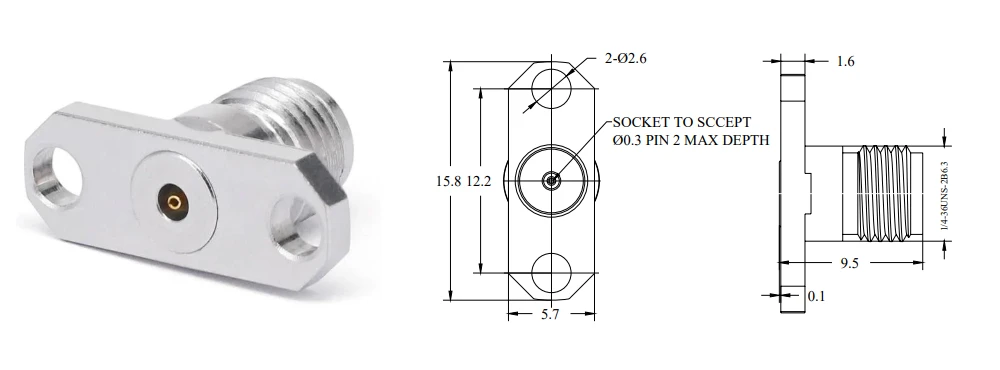

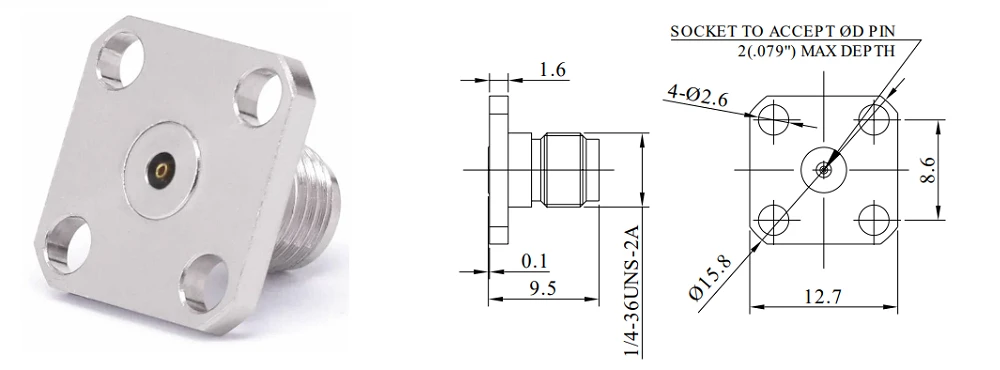

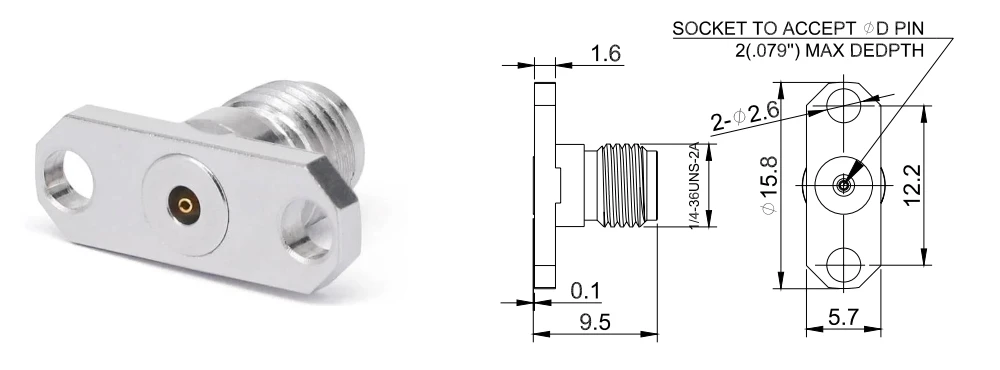

2,92 mm za nadomestljivi priključki

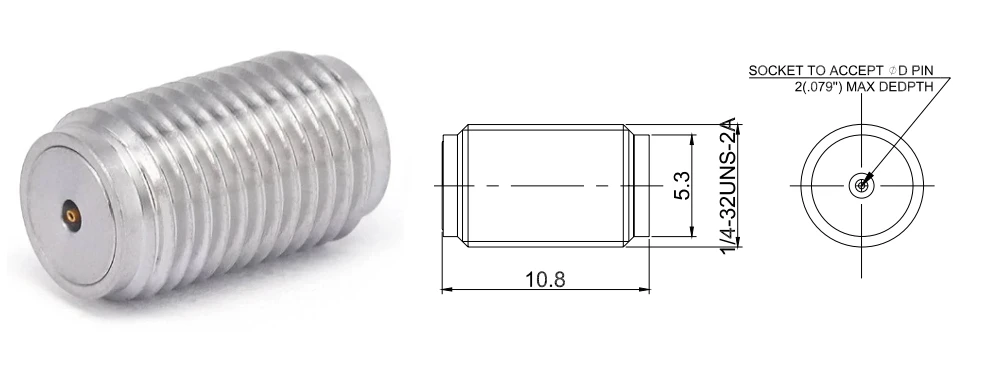

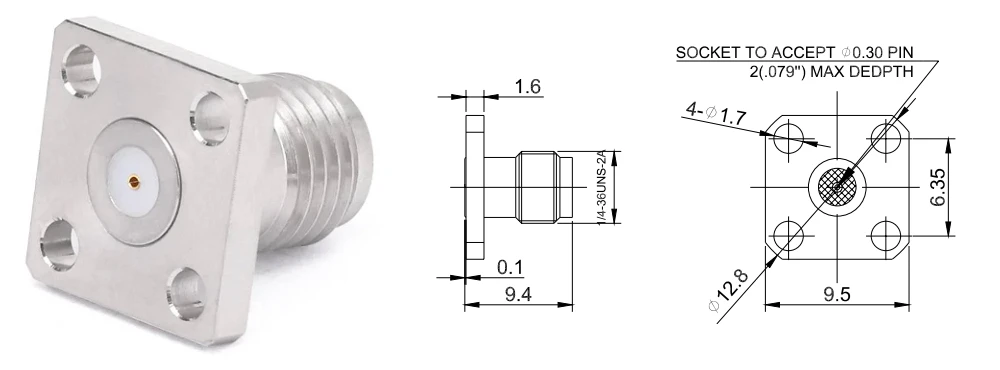

2,92 mm za nadomestljivi priključki

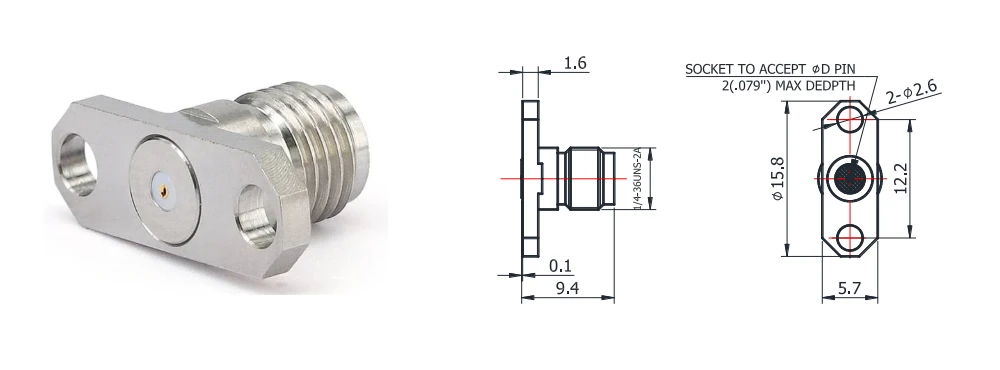

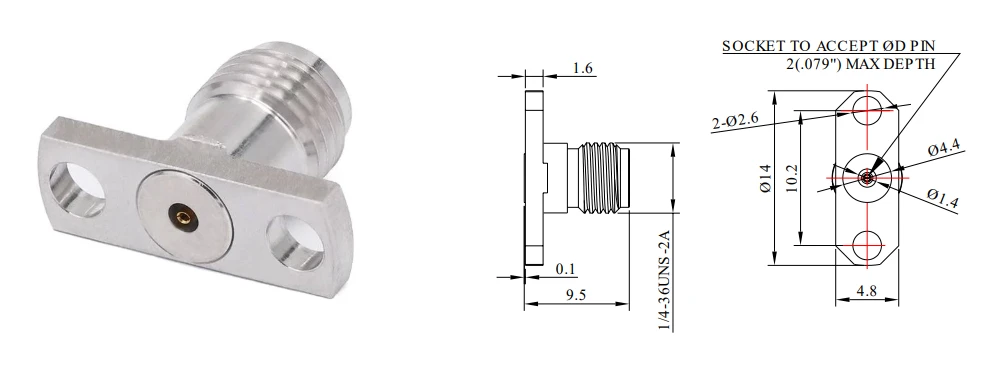

2,92 mm za nadomestljivi priključki

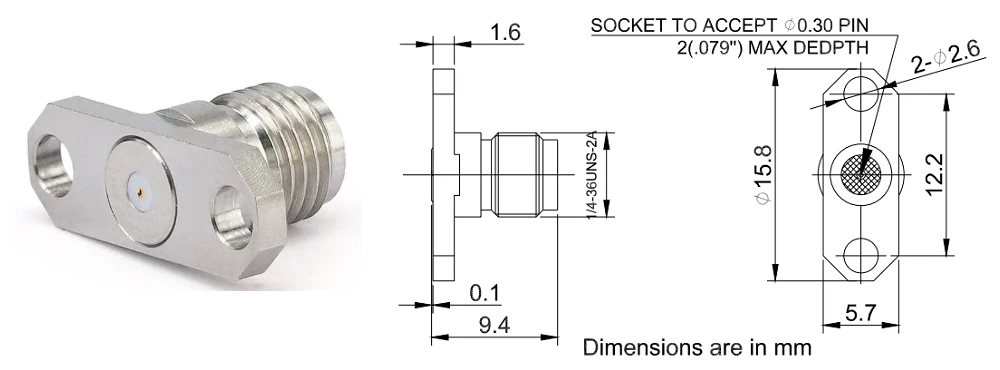

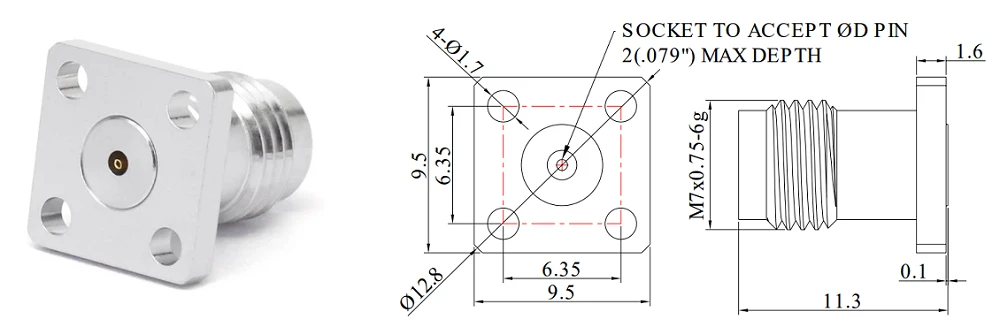

2,4 mm Zamenjalni priključki

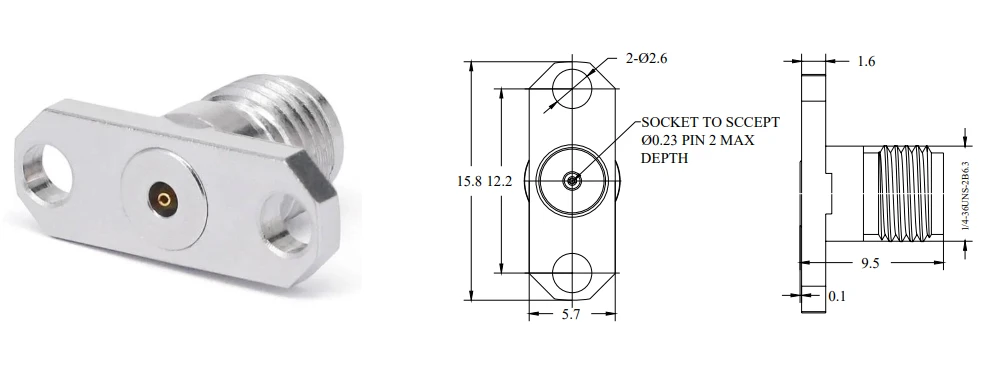

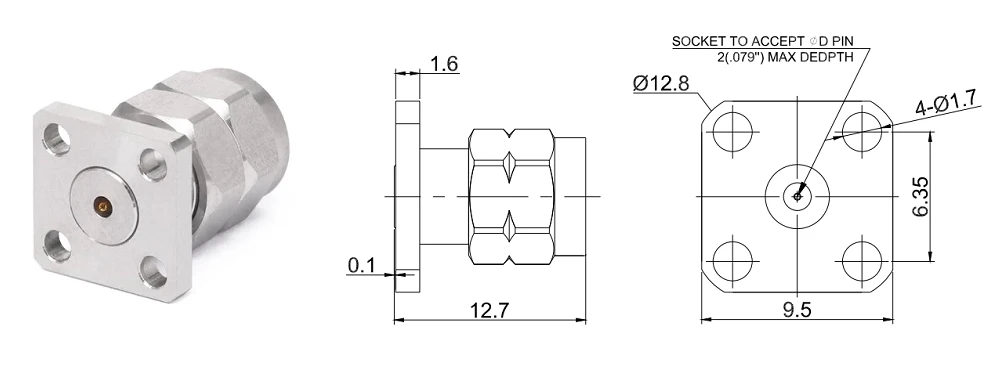

1,85 mm za nadomestljivi priključki
